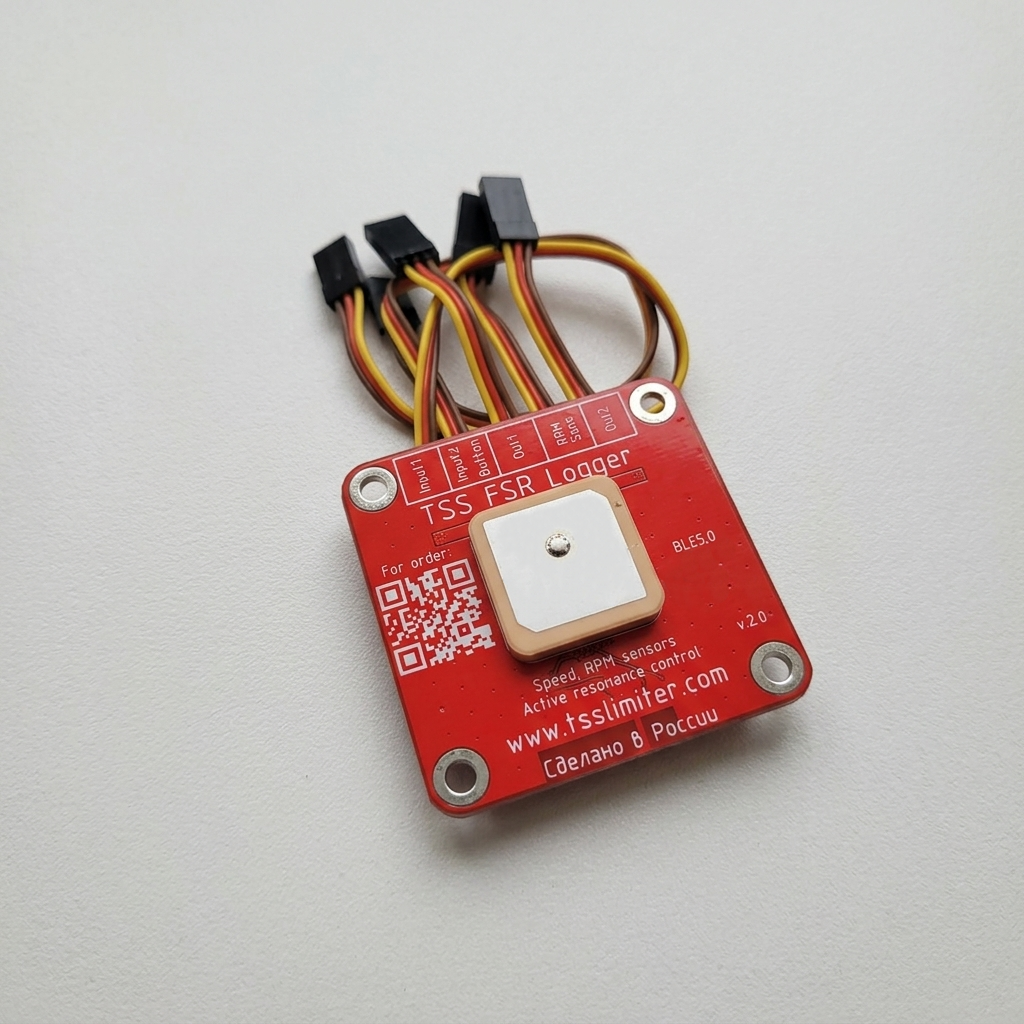

TSS FSR Logger v.2.0

Click a photo to enlarge

Logger for FSR class model boats: speed, engine RPM, temperature and two servo positions.

Price: €100

add to cart

Description

A logger for FSR class model boats allows real-time measurement of model speed, engine RPM, temperature, and the position of two servos. It records these parameters to internal memory as logs for subsequent viewing and analysis on a computer.

The device can control the position of a resonance pipe to ensure optimal operation of the internal combustion engine. This feature has several different operating modes, some of which are experimental.

The device is equipped with a Bluetooth Low Energy (BLE) interface for communication with mobile devices or computers, allowing configuration and real-time data acquisition without the need for direct access or removal from the model.

The device can be used in competitions, for training purposes, or as a hobby tool for model tuning and real-time monitoring of speed, RPM, and temperature.

Technical specification

Parameter	Value	Note
MCU version	32-bit MCU
Type of communication interface	BLE 5.0	Bluetooth Low Energy
Communication interface range	100 m	In line of sight
Receiver signal	0.4–2.3 ms	PPM 3.3–10 V; supports T-FHSS SR
BEC voltage	4–12 V
Current consumption	6 mA	From BEC
Operating temperature range	0–50 °C
IP rating	IP67
Device dimensions	60 × 60 × 10 mm	Without wires
Device weight	18 g	Including all wires and plugs
Logger recording time	14 hours at 10 Hz; 1 hour 27 min at 100 Hz	Pro version only
Logger write frequency	1–100 Hz
